Measurement Guide
Choosing the perfect trike isn't just about features - it's about fit. Our Measurement Guide is here to help you compare key dimensions across all Alpine electric tricycles, so you can find the model that suits your body, your needs, and your available storage space.
Whether you're checking handlebar height, step-through clearance, or overall length, this guide gives you the practical info you need to make a confident, informed decision—no guesswork, no surprises.
Viewing this on mobile? Swipe the table below to see dimensions for all models.
Glide |
Vale |
Explorer |
Ranger |
Expedition |
|
|---|---|---|---|---|---|

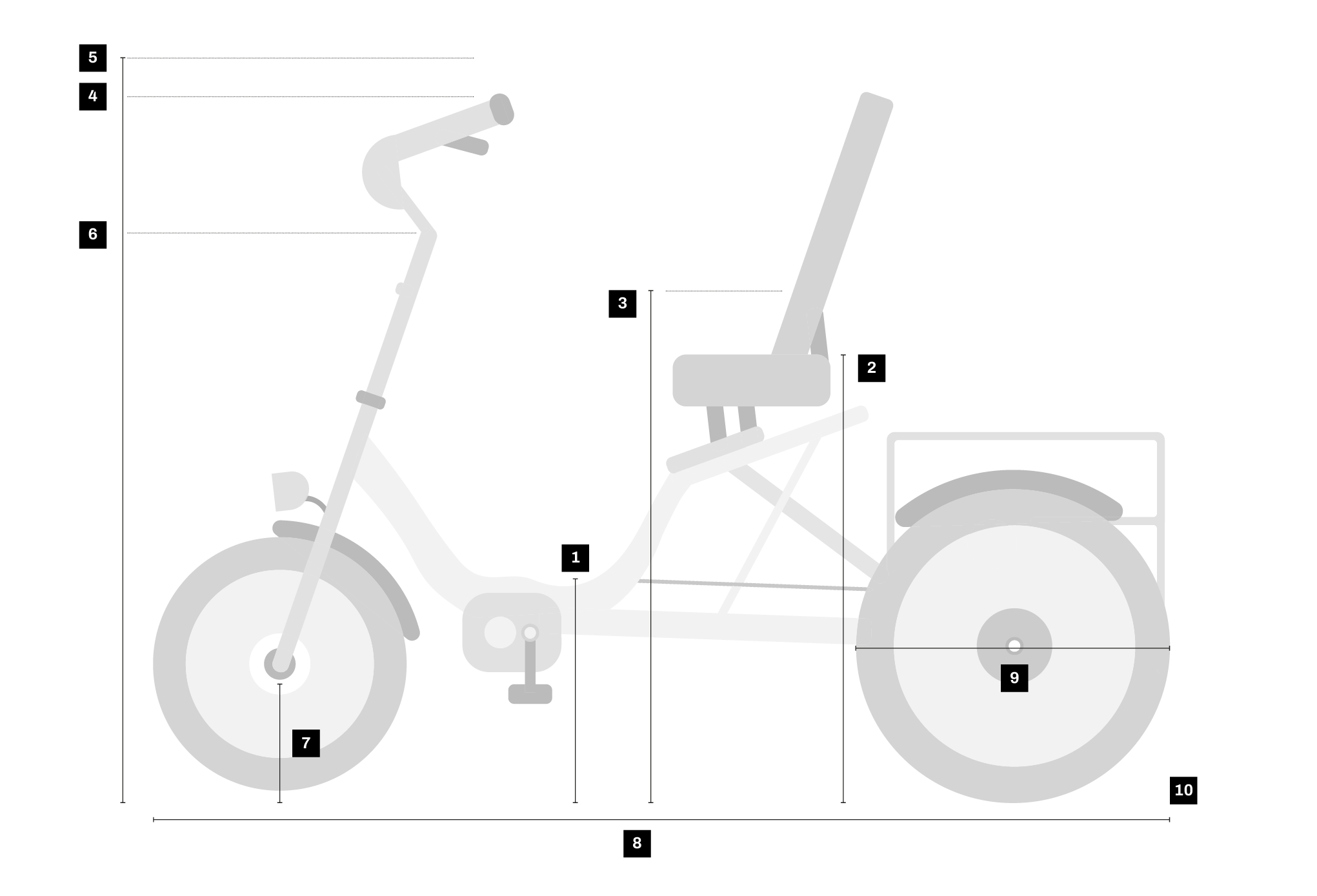

| [1] Floor to stepover height | 27cm | 39.5cm | 43cm | 44cm | 44cm |
| [2] Floor to seat (at lowest point) | 83cm | 67.5cm | 90cm | 78.5cm | 78.5cm |
| [3] Floor to seat (at highest point) | 103.5cm | 77cm | 105.5cm | 94cm | 94cm |
| [4] Floor to handlebars (at lowest point) | 104cm | 107cm | 108cm | 106cm | 106cm |
| [5] Floor to handlebars (at highest point) | 108cm | 120cm | 121cm | 117cm | 117cm |
| [6] Floor to top of headtube | 77cm | 80cm | 90cm | 89.5cm | 89.5cm |
| [7] Bottom of forks to top of headtube (wheel removed) | 70cm | 57cm | 68cm | 68cm | 68cm |
| [8] Trike length | 170cm | 188cm | 183cm | 180cm | 180cm |
| [9] Width of back wheels | 52cm | 72cm | 78.5cm | 76cm | 76cm |
| [10] Width at widest point (mudguards on) | 65.5cm | 76cm | 82cm | 79.5cm | 79.5cm |
| Minimum rider inside leg | 71cm / 28" | 66cm / 26" | 71cm / 28" | 66cm / 26" | 66cm / 26" |
| Maximum rider weight | 150kg / 23.5st | 165kg / 26st | 150kg / 23.5st | 150kg / 23.5st | 150kg / 23.5st |
| Trike weight | 38kg | 38kg | 35kg | 35kg | 35kg |
| Maximum speed | 15.5mph | 15.5mph | 15.5mph | 15.5mph | 15.5mph |
| Maximum range | Approx 40 miles | Approx 50 miles | Approx 33 miles | Approx 50 miles | Approx 50 miles |
Saddles and handlebars on all Alpine Trikes are adjustable, allowing you to find the best riding position.
Please note the Alpine Explorer and Alpine Glide have suspension seat posts on them. If they are changed to a standard rigid seat post the seat can go lower by 3cm.
